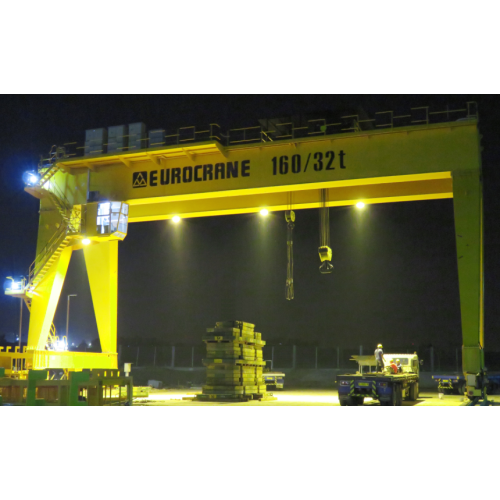

160/32t Load Gantry Crane

Introducing the "Mighty Mover 160/32t Load Gantry Crane" - the ultimate heavyweight champion of lifting! This beast of a machine is here to make your job a breeze and your colleagues green with envy. With its Herculean strength and precision, you can effortlessly lift anything from a feather to a T-Rex (well, maybe not a T-Rex, but you get the idea). Need to relocate your office building? No problem! Want to impress your boss by single-handedly moving mountains? Consider it done! The Mighty Mover 160/32t Load Gantry Crane is not just a tool, it's a statement - a statement that says, "I'm a professional who can handle anything, even if it weighs as much as my Monday morning blues."

45 Ton Gantry Crane Feature Description

A gantry crane, also called a portal crane, is a type of bridge crane with an overhead gantry staddles the workspace and is supported by legs that run on rails or wheels.

Flexible solution for all lifting needs

Excellent driving properties, stepless control, smoothly moving for option

.Mechanical feature

.Double welding box girder, ISO standard Camber

Steel box legs

Material Q235 or Q345

High quality automatic welding and NDT inspection

Shot-blasting Sa2.5 for complete girder after welding, stress release

Epoxy-polyamide high quality paiting coat, 2x2 with 180-230μm

10.9 class High tension bolts mouting between girder and legs, life time safety connection

Vertical gear motor driving,more safety and smaller space(option)

End carriage equipped with anti-friction bearings, cellular buffers, derailment protectors

.Electrification and outfitting

.Conductor power supply

All Hoist and crane movements are independent and can be run simultaneously.

Contactors meet crane applications, rated for severe vibration.

The control panels are finished to withstand corrosion, IP55 (Other on request)

Heavy duty plug head

The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact.

The multi-wire type fixed cables with plastic insulation are intended for crane usage.

The flat cables used for festoons are PVC insulated flexible flat cables rated for 450/750V, specially designed for cranes, hoists.

Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanised C-track, which is connected to the main girder with bolted or welded support brackets.

.Safety protection

.Both the end of horizontal and vertical rail are equipped with Limit Switch and baffle to avoid the dropping of the

main engine.

The internal friction clutch of the hanging machine can lead to the motor idling when over weight hanging and prevent the machine body and load chain from damage.

The upper and lower limit switches will be immediately prompted to stall the motor when over weight lift. Also, there is overheating protection device to protect the motor from overheating and burning.

The emergency stop button will make the whole system power failure and will be restarted manually.

Rain cover for outside hoist, driving units, electrical cubicle

Wind limitor: Wind detector device has been installed for all outdoor gantry cranes

Rail rocker

Rail sweeper
